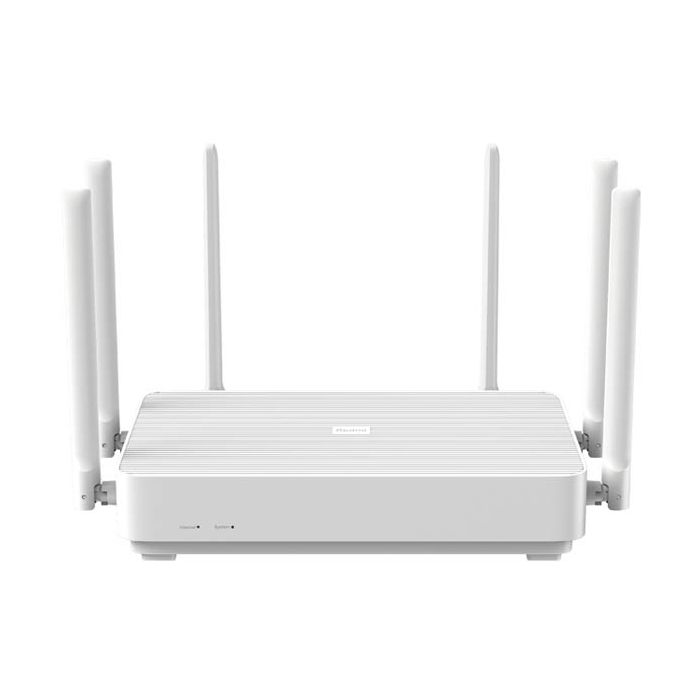

Xiaomi Redmi AX6 Router WiFi Wireless Qualcomm 6-core Mesh 512MB

$106.98
Availability: In stock
SKU
000802

Original Xiaomi Redmi AX6 Router WiFi Wireless Qualcomm 6-core Mesh 512MB

Highlights

Qualcomm 6-core enterprise chip
Enterprise-level professional chips, giving routers powerful data processing capabilities, keeping excellent and stable working conditions at all times.

Dual-core network acceleration engine
The dual-core 1.7GHz network acceleration engine (NPU) is designed to process network data traffic, reduce CPU load, and process data in multiple lanes. When multiple applications are concurrent, there is less delay and waiting.

Three-gigabit wireless rate
The dual-band concurrent wireless rate is up to 2976Mbps, which is 2.55 times the wireless rate of mainstream AC1200 routers. With a full Gigabit Ethernet port, you can enjoy the fast Internet experience

Dynamic over-bandwidth, taking into account speed and coverage, more adaptive
When transmitting data to different devices, the router 5G WiFi dynamically supports two modes of "2×2 160MHz" and "4×4 80MHZ MU-MIMO" simultaneously, without manual selection.

OFDMA efficient transmission
Multi-device Internet access, low latency without queuing
WiFi6 core technology-OFDMA, allows the router to complete the data transmission of 8 devices in one transmission, efficient transmission without waiting, and the network delay is reduced by 36%

6-channel high-performance signal amplifier
2.4GHz and 5GHz frequency bands are equipped with 2 and 4 high-performance independent signal amplifiers (PA+LNA) respectively, which enhance the signal transmission power and receiving sensitivity, and penetrate the wall stronger

6 high-gain omnidirectional antennas
6 external high-gain omnidirectional antennas made of phosphor copper material, support LDPC error correction algorithm, significantly enhance the anti-interference ability and signal coverage during data transmission

WiFi 6 throughout the house
Mesh networking, eliminate signal blind spots
The powerful combination of multiple routers, the theoretical rate of wireless networking is as high as 2402Mbps, and the super-large apartment can also be easily and seamlessly covered.

Connect smart devices with one click
It can automatically discover uninitialized Xiaomi smart devices around you, and complete the network access with the Mijia App with one click. At the same time, it supports automatic synchronization of 512MB large memory for password change, and supports 248 devices to connect stably at the same time

Xiaomi mobile phone deep optimization
Intelligent recognition, exclusive acceleration for game scenes
When multiple devices are surfing the Internet, the network battle is being staged every minute and every second. The router can be intelligently identified. In the game scene, exclusive acceleration is enabled for Xiaomi/Redmi phones, which significantly reduces game delay and lag

Built-in Tencent online game accelerator
Support mainstream national server game acceleration and overseas game acceleration, covering all platforms of PC, mobile phone and host, ultra-low latency and more stable, experience the super pleasure of game acceleration

Internet settings that parents can complete
Internet settings are quick and easy, so simple that parents can use it

Child online protection
Support the setting of the network time of the device and the allowed access range to protect children's healthy surfing.

Real-time notification
When unfamiliar devices are found rubbing the Internet, they can actively send out notifications and reminders, and support mobile phone one-click blackout

Hardware Configuration:
Processor: IPQ8071A 4-core A53 1.4GHz CPU
Network Acceleration Engine: single-core 1.5GHz NPU
Memory: 512MB
2.4G Wi-Fi: 2 * 2 (supported by IEEE 802.11ax agreement, the theoretical maximum speed of 574Mbps)
5G Wi-Fi: 4 * 4 (maximum support IEEE 802.11ax agreement, the theoretical maximum rate of 2402Mbps)
Products Antenna: External antenna 6 increased root
Product cooling: natural cooling
Machine Interface: 1 10/100 / 1000M adaptive WAN ports (Auto MDI / MDIX)
3 10/100 / 1000M adaptive LAN port (Auto MDI / MDIX)
LED indicators: 2 (indicator system * 1, Internet indicator * 1)
System reset button: 1
Power input: 1
Standard protocols: IEEE 802.11a / b / g / b / ac / ax, IEEE 802.3 / 3u / 3ab
Certification standards: GB / T9254-2008; GB4943.1-2011

Wireless parameters:
Dual-band: 2.4GHz and 5GHz
Radio channel: 2.4GHz channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz channel: 36,40,44,48,52,60,64,149,153,157,161,165

Software parameters:
Operating System: OS-based smart WiFi OpenWRT, the depth of customization MiWiFi ROM
Wireless Security: WPA-PSK / WPA2-PSK / WPA3-SAE encryption
Wireless Access Control (black list), SSID hiding, intelligent anti-friction Network
Management Applications: Support Web, Android, iOS



General

Brand: Xiaomi Redmi
TYPE : Redmi AX6
Color: White

ROM 256mb, Memory 512MB


Product Detail

Intelligent router operating system Mi WiFi ROM based on Open WRT deep customization

WiFi
Physical interface 1*10/100/1000 WAN (Auto MDI/ MDIX)
3*10/100/1000 LAN (Auto MDI/ MDIX)
 Antenna 6*External high gain antennas
 Detail

Interface: DC Port,RJ45,WAN/LAN
Router Connectivity Type: Ethernet
Transmission Rate: 3000Mbps
Speed of Ethernet Port: 10/100/1000Mbps
Network Protocols: IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3U,IPv6,WiFi 6 (IEEE 802.11ax)
Wireless Standard: Wireless AC
Wireless Security: WPA-PSK,WPA2-PSK
WiFi Network Frequency: 2.4GHz,5GHz
LAN Ports: 3 ports
Max. LAN Data Rate: 1000Mbps
Usage: Gaming,Home use

2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 36,40,44,48,149,153,157,161,165

Dimensions and Weight

Product weight: 0.9kg

Package weight: 1.5kg

Product size (L x W x H): 28.40 x 18.60 x 18.60 cm / 11.18 x 7.32 x 7.32 inches

Package size (L x W x H): 34.00 x 23.00 x 5.00 cm / 13.39 x 9.06 x 1.97 inches

Packing List  Packing List: 1 x Router, 1 x Manual, 1 x Power Cord (12V / 1A)
