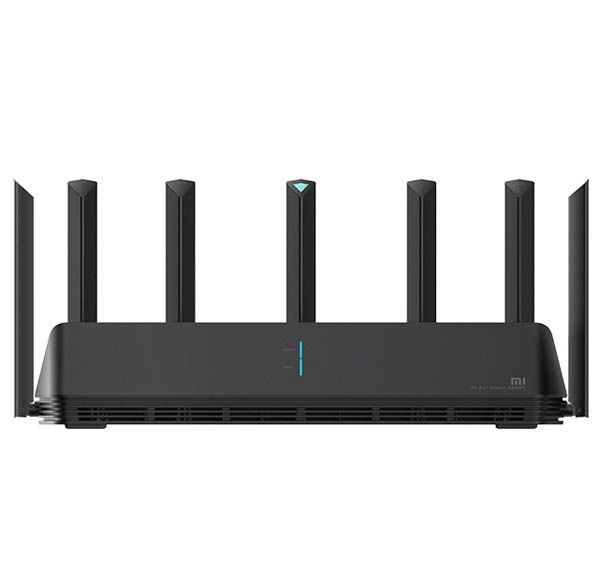

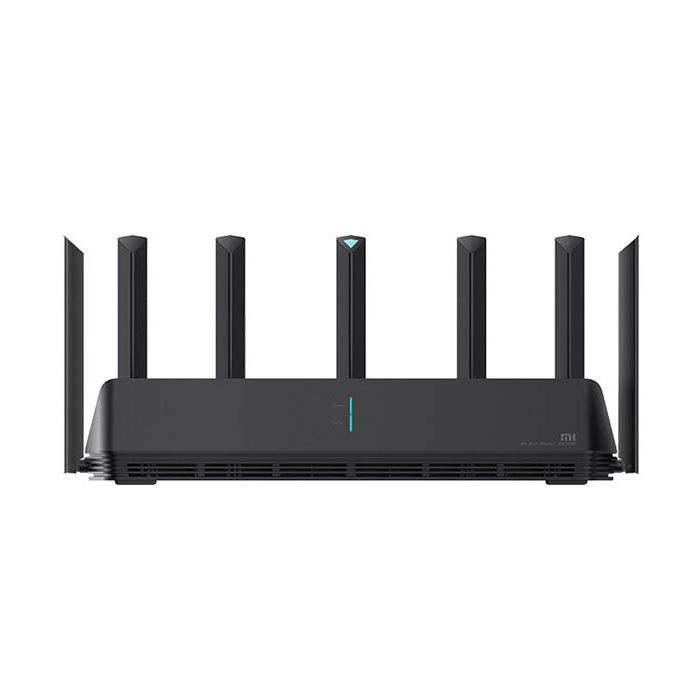

Xiaomi AX3600 AIoT Wireless Router WiFi 6 2976 Mbps 6 Antennas 512MB Memory

Be the first to review this product

$169.98

Availability: Out of stock

SKU

000803

Details

Original Xiaomi AX3600 AIoT Wireless Router WiFi 6 2976 Mbps 6 Antennas 512MB Memory

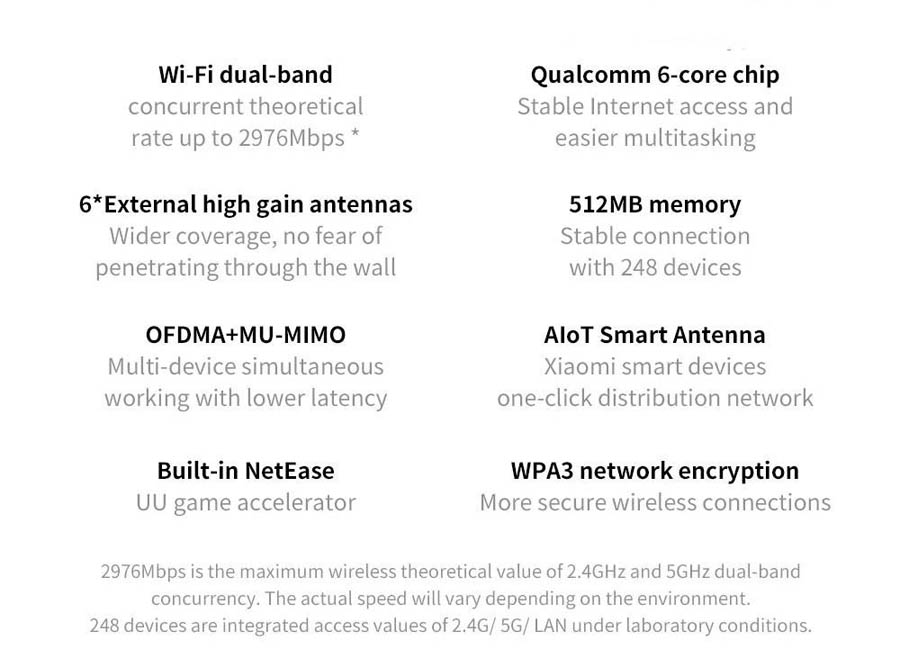

Highlights

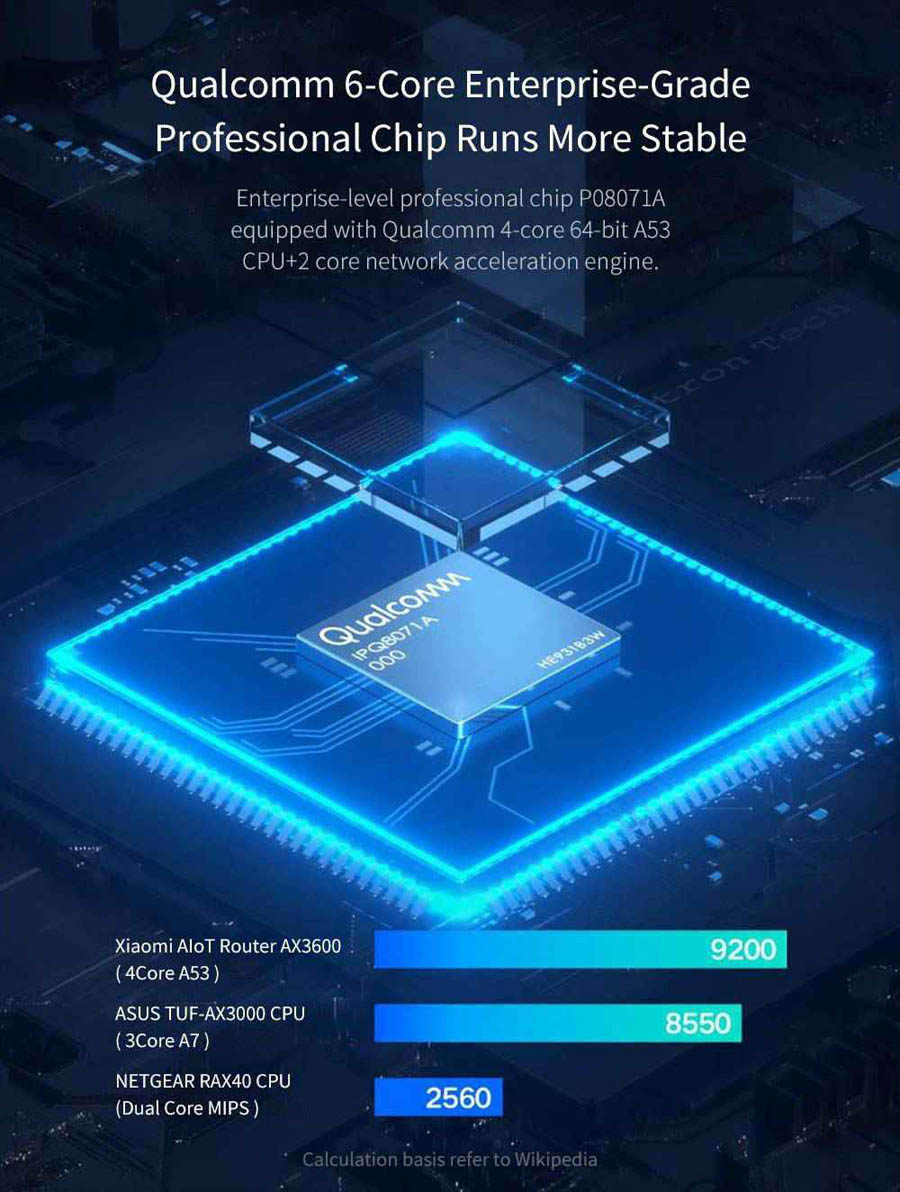

Qualcomm 6-Core Enterprise-Grade

Enterprise-level professional chip P08071A, equipped with Qualcomm 4-core 64 bit A53 CPU+2 core network acceleration engine.The professional chip runs more stable.

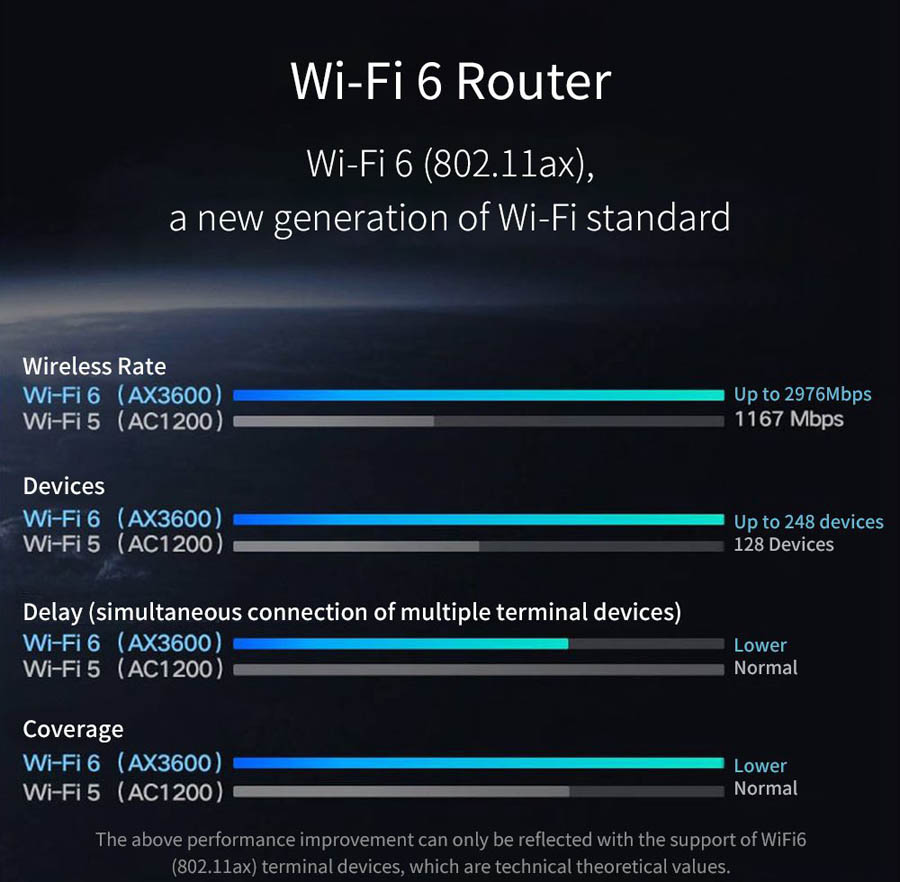

OFDMA

OFDMA significantly improves the transmission efficiency of multiple devices working at the same time and reduces the delay.

MU- MIMO

MU-MIMO allows multiple antennas of a router to serve multiple devices at the same time.

Support Beamforming Technology, Directional Enhanced Signal

Beamforming technology, which can automatically detect the position of mobile phones, computers and other terminals in the network, enhance the signal of the location, make Wi-Fi effective coverage wider, and the signal quality is more stable.

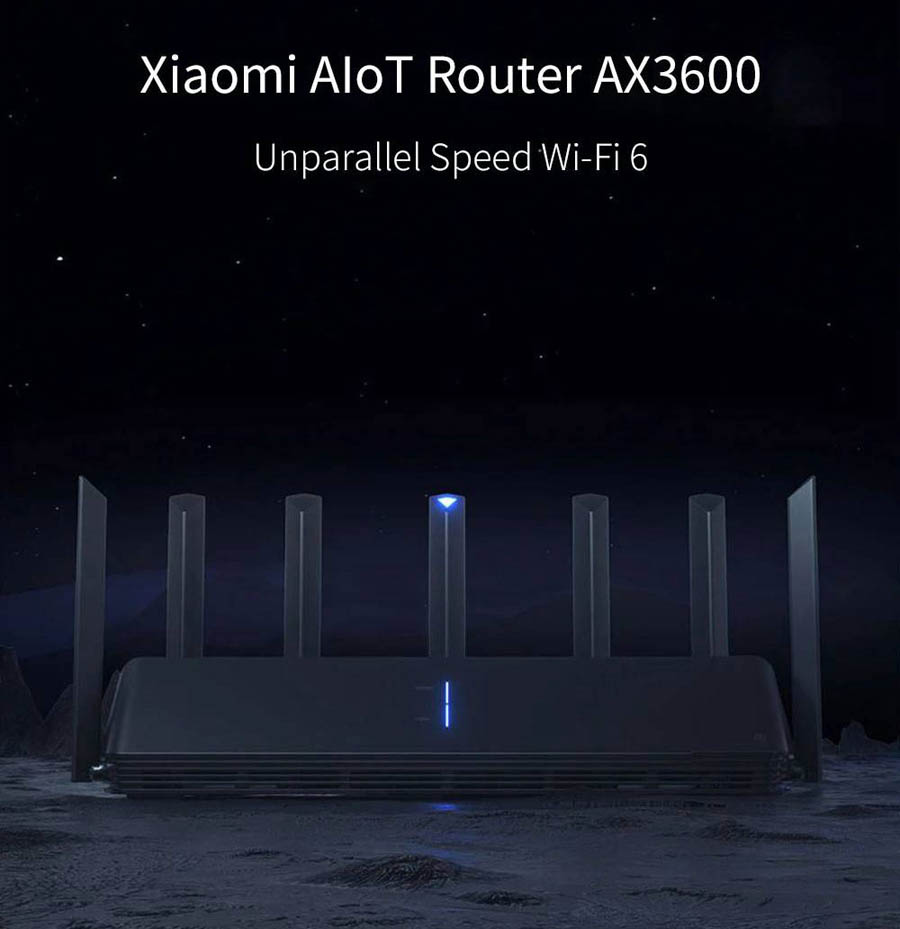

Xiaomi AX3600 AIoT Wireless Router

General	Brand: Xiaomi Model: AIoT AX3600 Type: Wifi Router
Product Detail	Wireless Standard: IEEE 802.11a/b/g/n/ac/ax, IEEE802.3/3u/3ab
WiFi	Dual Band: 2.4GHz, 5GHz Wireless Channel: 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13 5GHz Channel: 36,40,44,48,149,153,157,161,165
Physical interface	Physical Interface: 1 x 10/100/1000 WAN (Auto MDI/ MDIX);3 x 10/100/1000 LAN (Auto MDI/ MDIX)

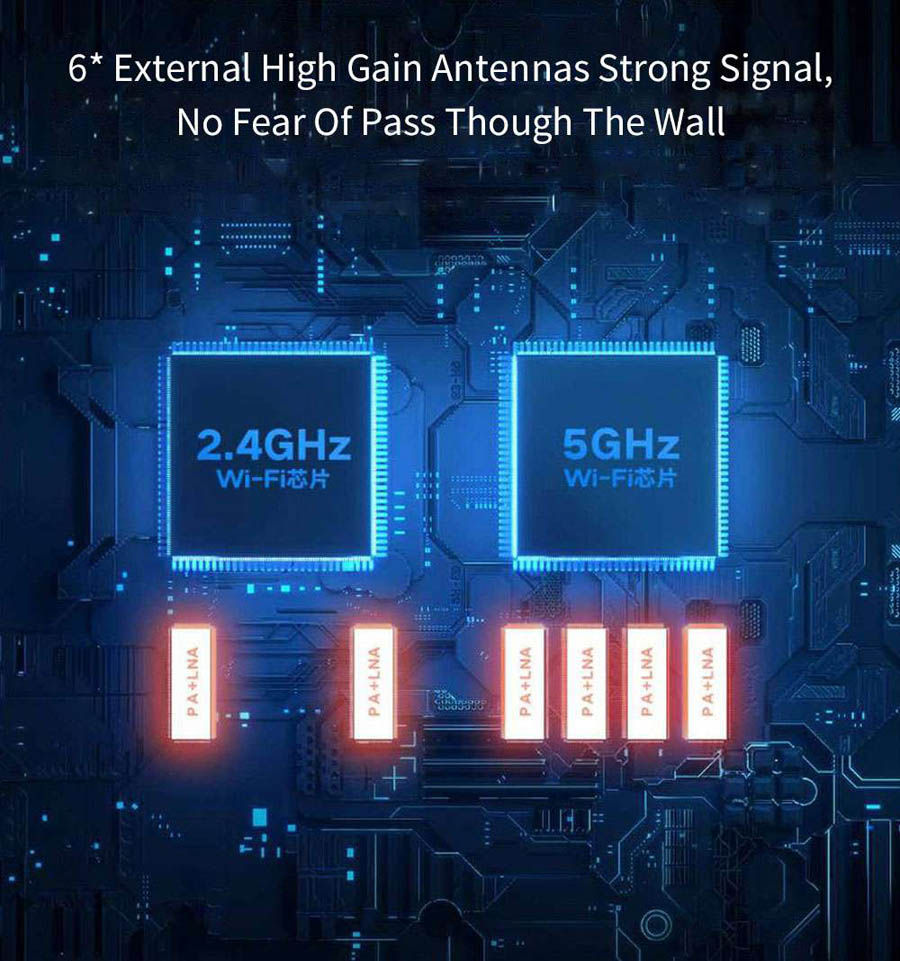

Antenna	6*External high gain antennas
Detail	CPU: IPQ8071A 4Core A53 1GHz Network Acceleration Engine: Dual core 1.7GHz NPU ROM: 256MB Memory: 512MB 2.4G Wi-Fi: 2x2 (IEEE802.11ax, 574Mbps) 5G Wi-Fi: 4x4 (IEEE802.11ax, 2402Mbps) Antenna: 6 x External high gain antennas + 1 x AloT Antenna Heat Dissipation: Natural heat dissipation Physical Interface: 1 x 10/100/1000 WAN (Auto MDI/ MDIX);3 x 10/100/1000 LAN (Auto MDI/ MDIX) LED Indicator Light: 1 x SYSTEM indicators 1 x INTERNET indicators 4 x Network ports 1 x AIoT light Reset Button: 1 x Reset button Power Input Interface: 1 x Power input interface Wireless Standard: IEEE 802.11a/b/g/n/ac/ax, IEEE802.3/3u/3ab Certification Standards: GB/T9254-2008; GB4943.1-2011 Dual Band: 2.4GHz, 5GHz Wireless Channel: 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13 5GHz Channel: 36,40,44,48,149,153,157,161,165 Modulation Mode: 11b: DSSS: DBPSK(1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps) 11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/54Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0~MCS15 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate Set: MCS0~MCS9 (4 streams supported) 11ax: MIMI-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM. Rate set: MCS0~MCS11(4 streams supported) Operating System: Intelligent router operating system MiWiFi ROM based on OpenWRT deep customization Wireless Security: WPA-PSK / WPA2-PSK/ WPA3-SAE encryption, wireless access control (black and white list), hidden SSID, intelligent anti-scratch network Management Application: Support Web, Android, iOS Working Temperature: 0~40ºC Storage Temperature: 10%~90%RH Non-condensing Working Humidity: -40~70ºC Storage Humidity: 5%~90%RH Non-condensing
Dimensions and Weight	Weight: 0.5kg Size (L x W x H): 41.0 x 13.4 x 17.7cm
Packing List	1 x Xiaomi AIoT router AX3600 1 x Chinese user manual 1 x Power line (12V/1.5A) 1 x Network cable
